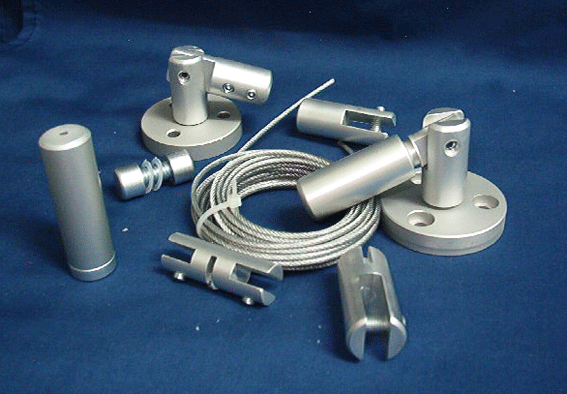

The Cable Hanging System is a great system which gives you flexibility and wide divers options of use. You can hang vertical posters or create partitions. You can horizontal or angled shelves. The only limitation is your creativity. The System is composed of a small number of components that through the combination of components you select you can create a lot of possibilities for your needs.
Understanding the basic system components and their most advantageous applications can play an important part in your design solution. By knowing your options, and how they behave, you will be able to create the hanging system that can also become a design feature, allowing you to best show off your products, posters, images or creative showcase display.
All specifications are subject to change without notice
All images (except were indicated) are copyright of Skyline Plastic Works
No unauthorised use of any material found on this web site is allowed
TOP
" We try to make the impossible possible! "
Experience & Reliability
INFORMATION
Cable Hanging Systems are the ideal solution for:
EFFECTIVE ADVERTISING
ECONOMICAL MARKETING
INTERCHANGING ADVERTISING
INOVATIVE COMMUNICATIONS
MODERN PRESENTATIONS
DIFFERENT METHODS OF HANGING ADVERTISING
etc.
CLICK THE IMAGES TO ENLARGE
STEEL CABLE
The Cable is the heart and soul of the system. It is the component that joins all the other components together. Our Cable is made of steel and has a diameter of 2mm., thus being almost invisible whilst providing the required security.
CABLE HANGING
SYSTEM.....
CABLE HANGING
SYSTEM.....
CEILING / FLOOR
FLIXIBLE STUDS
Codes:17-30
17-45
The Flexible stud is the component that secures the whole system to the floor and ceiling, although since it is flexible it can be used also on walls whilst providing the same verticale hanging possibility. Due to its large round screwing plate, this component should be used when heavy objects are to be
hanged with the system. It is Flexible since part of the component can be bend to the required angle required, not just straight down or up. This component comes in two different lengths:
2.5 cm (1 in) and 3.7 cm (1 1/2 in).
The 2.5 cm (1 in) Ceiling / Floor Flexible Studs
The 3.7 cm (1 1/2 in) Ceiling / Floor Flexible Studs
CEILING / FLOOR
FIXED STUDS
Code:17-45

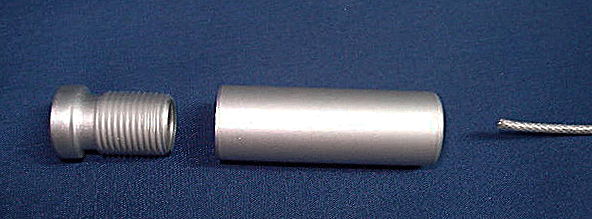

The Fixed stud is also a component that secures the whole system to the floor and ceiling, but since it is not flexible it cannot be used on walls and provide a vertical hanging possibility. It is to be screwed to the ceiling and floor by means of one screw through one end of the stud, thus this stud
cannot be used for heavy objects. This component comes in one length only: 4.5 cm (1 3/4 in).
The 4.5 cm (1 1/4 in)
Ceiling / Floor Fixed Studs
TOP / BOTTOM
FIXED STUDS
Code:16-42

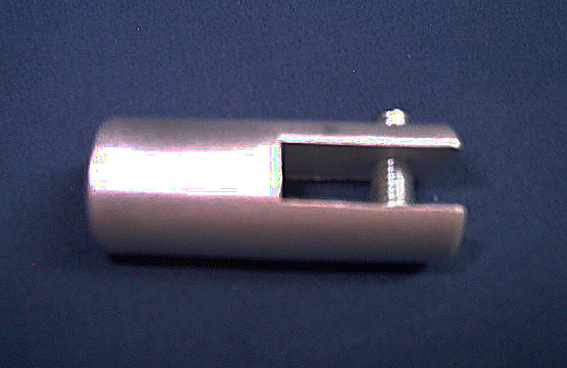

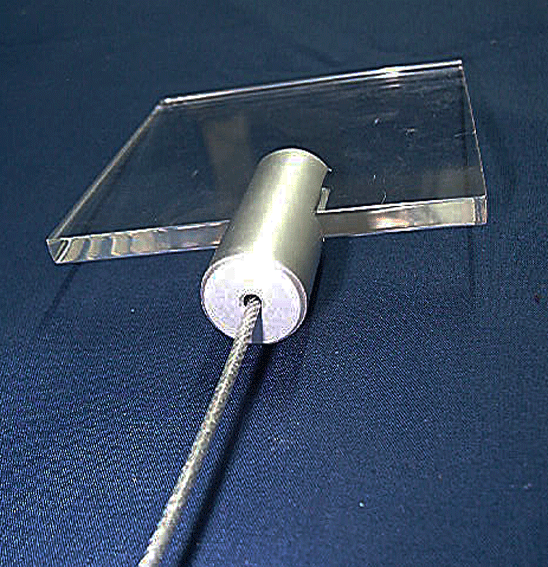

The Top / Bottom Fixed Stud is the component that secures the visual medium ( example acrylic or print) to the whole system. At one end of the component it secures the steel cable coming from the top (ceiling) or bottom (floor), whilst on the other end the visual medium is secured. The gap that holds the visual
medium is 6 mm (1/4 in) wide, thus the visual medium used cannot be thicker than 6mm (1/4 in). The visual medium will is held from its top and bottom sides and will be held tight with the stud by means of an Allen-Key screw.
SIDE
FRAMES
STUDS
Code:16-39
The Side Frames Stud is another component that secures the visual medium (acrylic or print) to the whole system. The steel cable passes through a thin gap on one side of the component and is secured by means of an Allen-Key screw. The other end of the component holds the visual
medium, which is secured by means of an Allen-Key screw. Therefore the visual medium is held from its sides and not from its top or bottom. The gap that holds the visual medium is 6 mm (1/4 in) wide, thus the visual medium cannot be thicker than 6mm (1/4 in).
BETWEEN
FRAMES
STUDS
Code:13-37
The Between Frames Stud is another component that secures the visual medium (acrylic or print) to the whole system. However this component hold two visual mediums instead of one. The steel cable passes through a
thin gap in the middle of the component and is secured by means of an Allen-Key screw. This leaves space on both ends to hold two visual mediums, one on each side, which are secured by means of an Allen-Key screw. Therefore the visual mediums are held from their sides and not from their top or bottom. The gaps that holds the visual mediums is 6 mm (1/4 in) wide, thus the visual mediums cannot be thicker than 6mm (1/4 in).
BOLTS
Code:12.5-24
The Bolt is a component that does not connect anything to the whole system. It's only function is to better hold together the visual mediums that are composed of two faces (example acrylic or glass) sandwiching a print. In such
cases, especially if the visual medium is large, the Allen-Key screws of the top / bottom or side components will not be enough to hold the visual medium faces together. Thus they are held better together by means of these Bolts. However holes must be drilled in the visual mediums in order that these bolts are screwed in from one side to the other. Scratching is eliminated through the use of two silicon washers.
